Magneto ignition system 12V 100W DC for Simson KR51/1, SR4-2, SR4-3, Duo 4/1

Magneto ignition system 12V 100W DC - with integrated fully electronic ignition - Simson KR51/1, SR4-2, SR4-3, DUO 4/1

Magneto ignition system with integrated fully electronic ignition.

• Light output 12V/100W Direct current
• with integrated fully electronic ignition, DC/ direct current
• suitable for bird series with and without fan and screwed base plate (direct screw connection)
• No fastening by means of retaining clips
• intended as a replacement for ignition systems that are attached to the engine with mounting claws / retaining clips
• This ignition system can be operated completely without a battery.
• Ignition pulsing is fully electronic and contactless
• Replaces the old alternator, regulator and ignition interrupter
• Sits in the same position as the original ignition, no changes to the engine housing are necessary.

Attention: This ignition system only has direct current voltage and no longer the familiar direct current/alternating current mix. The stop light and rear brake light no longer change over.

Note:

• Fan wheel NOT included in the scope of delivery
• The original fan or a corresponding replica is screwed onto the rotor.
• For maximum flexibility in production, no keyway was milled into the rotor. The ignition timing is now determined via markings.

• all parts new
• significantly brighter light
• extremely stable ignition with high-energy sparks
• better start, better combustion
• no more wear on the contact breaker
• new controller enables operation without battery and capacitor

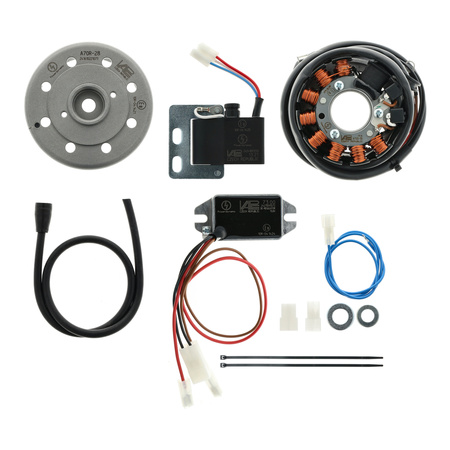

1x magneto ignition system with integrated fully electronic ignition
