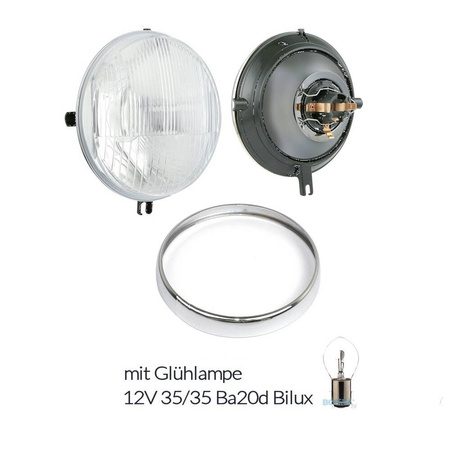

Headlight Unit + Chrome Trim Ring + 12V 35/35W Bulbs for Simson SR50

Headlight insert

Quality product, E-mark available (approved for use on public roads).

Diameter for original lamp holder 45mm for Bilux bulbs (BA20d 12V 35 / 35W)

Construction:
Metal reflector
Pane of glass
Bulb socket S2
elastic element for attachment
the lamp holder type S2

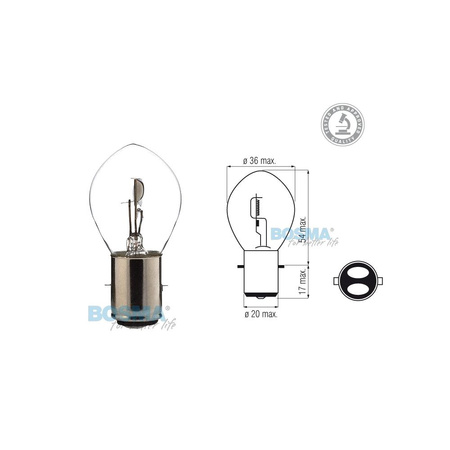

Suitable for the following light bulbs:
12V 35 / 35W with base BA20d

Technical specifications
Symmetrical light C / R-BS class, check according to UNECE regulation No. 113.

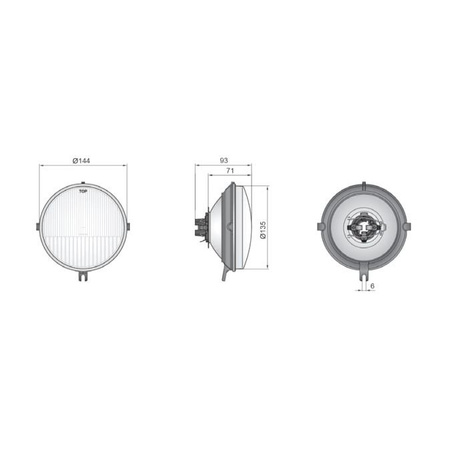

Dimensions - reflector:
Glass ø135 mm
Lamp holder ø144 mm

Headlight ring

Metal finish
Color: Black

Dimensions - headlight ring:
Light exit: approx. 136 mm
Lamp ring outside: 160 mm
Height: 19mm

Particularly suitable for
Samson
SR50 N (1986-88 BJ.),
SR50 B3 (1986-89 BJ.),
SR50 B4 (1986-89 BJ.),
SR50 C (1987-89 BJ.),
SR50 CE (1986-88 BJ.),
SR50 B (1987-90 BJ.),
SR50 / 1 B (1989-93 BJ.),
SR50 / 1 B3 (up to BJ. 1992),
SR50 / 1 B4 (up to BJ. 1992),
SR50 / 1 C (1991-93 BJ.),
SR50 / 1 CE (1991-93 BJ.)
SR80 / 1 C (1991-93 BJ.),
SR80 / 1 CE (1991-93 BJ.)

Item is a quality product (EU production)

Scope of delivery:

1 x headlight insert with glass (without lightbulb)

1 x lamp ring

1 x incandescent lamp 12V 35 / 35W BA20d bilux lamp S2 E-mark
