Circuit diagram:
Ground (housing) is positive pole
szcz. (Uzn-6V) - O brushes / charge indicator light (blue / blue)
+ 6V - battery / ignition lock (red / red)
wzb. (fzn-10A) - M coil (resistor) (white)

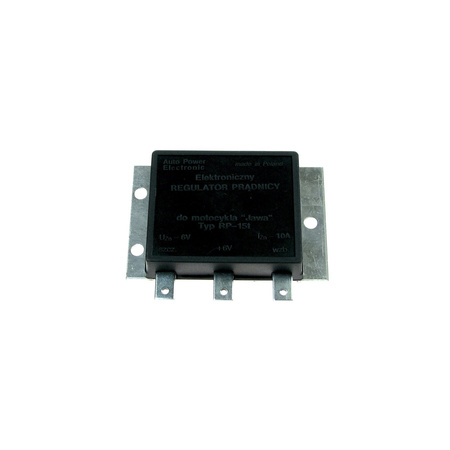

Replacement for the mechanical regulator in the event of a breaker ignition
Item is a quality product (EU production)
Dimensions:
Length: 110 mm
Brite: 850 mm
Height: 23mm
Scope of delivery:
1 x charge regulator
Users reviews
Tech specs:
Pasujące do modeli: | JAWA |
Zustand: | neu |
Voltzahl:: | 6V |
Gewicht | 200 Gramm |
