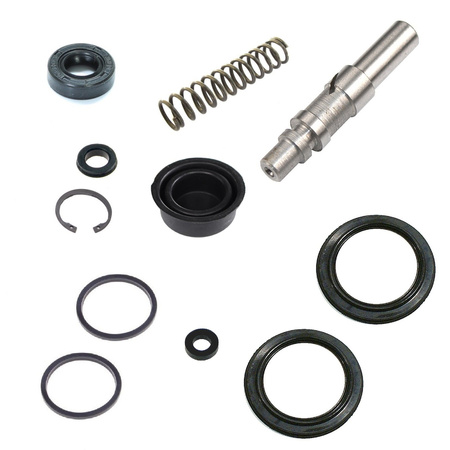

Brake Master Cylinder Rebuild Kit (Round) for MZ ETZ Motorcycle — 11-piece

Suitable for the original brake master cylinder with a round container

Item is a quality product (EU production)

Dimensions:

Feather:
Total length: approx. 51 mm
Diameter of the spring: approx. 11.6 mm
Wire diameter: approx. Ø1.4 mm
Original spare part no. (for comparison purposes): 30-24,078

Sealing ring:
Thickness: approx. 7 mm
Inner diameter: 10 mm
Outside diameter: 20 mm
Double lip A10 (10x20x7)

Pistons:
Length: 630 mm
Outside diameter: 12 mm

Hermetic bellows:
Original spare part no. (for comparison purposes): 30-24,149

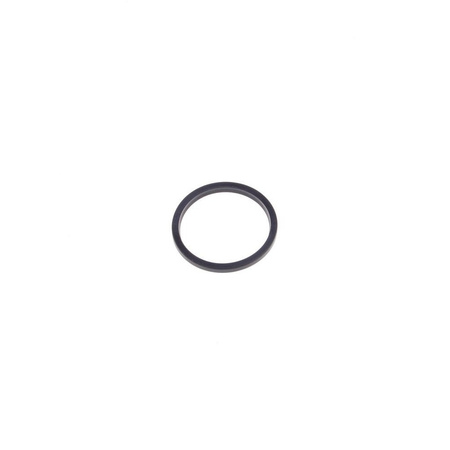

Piston seal:
Thickness: approx. 3.5 mm
Inner diameter: 40 mm
Outside diameter: 46 mm
Original spare part no. (for comparison purposes): 30-24,028

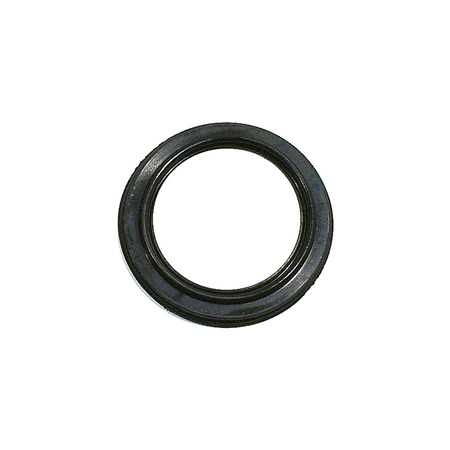

Sleeve for brake piston:
Thickness: approx. 3 mm
Inner diameter: 33 mm
Outside diameter: 50 mm

Oring outer lip ring (for bore):
Inner diameter: 8 mm
Outside diameter: 13 mm
Thickness: approx. 4 mm

Scope of delivery:

1 x spring
1 x sealing ring
1 x piston
1 x hermetic bellows
2 x piston seals
2 x sleeve for brake piston
1 x Oring outer lip ring

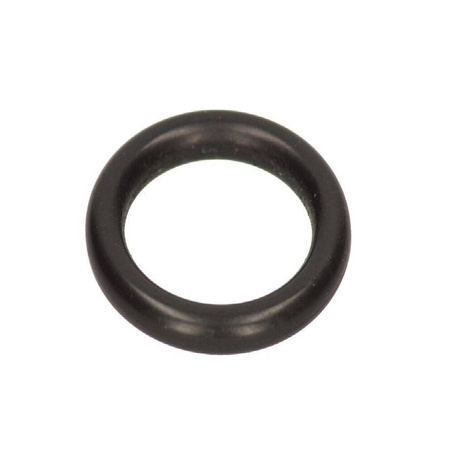

1 x Oring sealing ring for brake caliper halves
1 x circlip HBZ (for master brake cylinder on the piston)
