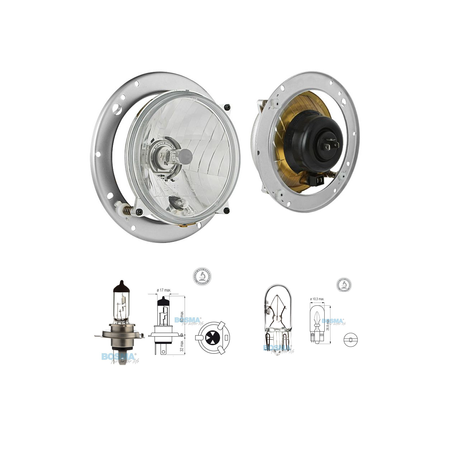

Front Headlight + H4 & W5W Bulbs - Deutz Series 07 Agrocompact DX

Right-hand traffic

Left Right

Particularly suitable for:
Deutz-Fahr series: 07, Agrocompact,
Agroprima, Agrostar, Agroxtra, DX,
DX3 SC, DX3 V / F / S, DX3 VC, DX4,
DX6, DX7, Dxab, Dxbis, hops

Construction:
Plastic reflector
Pane of glass
Main bulb seal
Metal adapter

Additional benefits
Optical structure designed in free field technology allows the headlight to have a modern look and better light parameters compared to the previous version (headlight type Zetor).

Suitable for the following light bulbs:
H4 12V 60 / 55W or H4 24V 75 / 70W
R2 12V 45 / 40W or R2 24V 55 / 50W
W5W 12V or 24V with
W2.1x9.5d sock

Technical specifications
Sealing class IP54
The reference number of the spotlights (version R2), which indicates the maximum illuminance, is 7.5 (ie approx. 37.5 lx at a distance of 25 m).
The reference number of the spotlights (version H4), which indicates the maximum illuminance, is 12.5 (ie approx. 60 lx at a distance of 25 m).

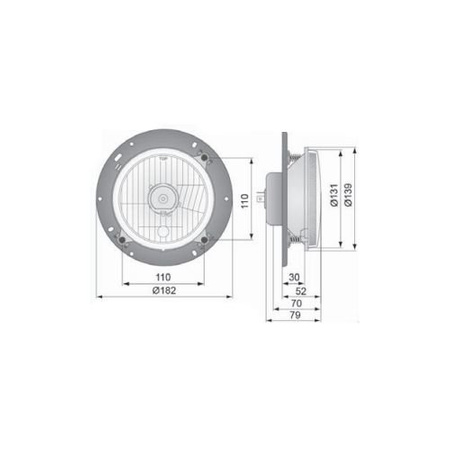

Dimensions:
ø139 mm

Item number: (for comparison purposes) 1A 3003370067

Quality product, TÜV approved, E-mark available

Item is a quality product (EU production)

Scope of delivery:

1 x headlight insert with glass

1 x light bulb H4 12V 60 / 55W

1 x light bulb W5W 12V 5W
