Simson SR1/SR2/SR2E/KR50 Wiring Harness with Color Diagram - Gray

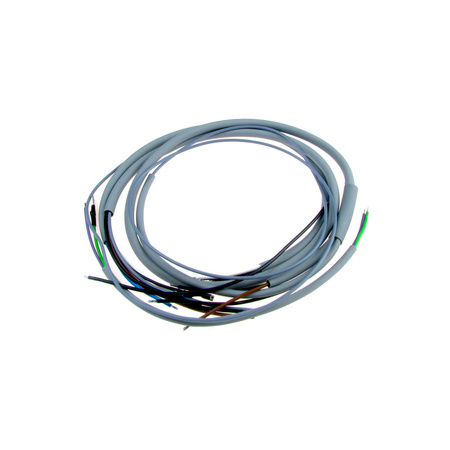

Wiring harness complete in an unused and new condition.

With temperature-resistant insulation hose and cable eyelets.

The cables have a cross section of 0.75 mm² to 1.00 mm² and tinned cable ends.

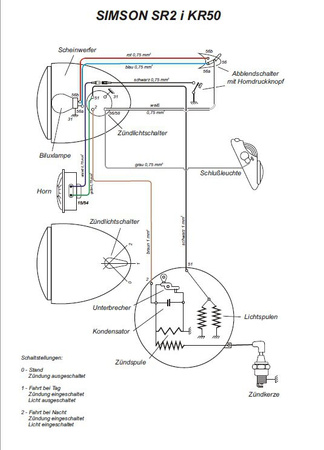

A graphic representation and a circuit diagram for a quick and safe laying of the cables is included.

Dimensions:

Cable length:

Headlights / ignition light switch - dimmer switch with horn push button: 50 cm (1x flat plug sleeve)

Ignition light switch - Hope: 30 cm (1x flat plug sleeve)

Total length (main wiring harness) ignition light switch - tail light: 218 cm

2x ground cable: 20 cm

All cables have tinned cable ends

Scope of delivery:

1 x wiring harness

1 x circuit diagram
