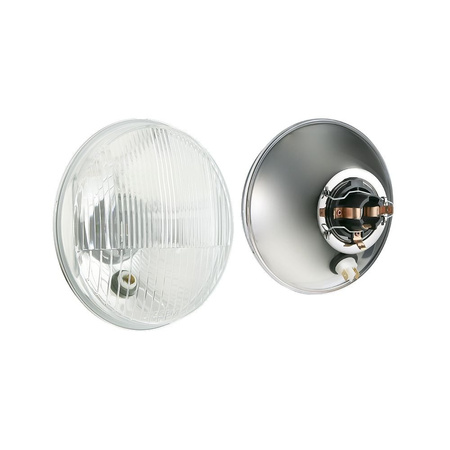

Headlight unit with parking light for Simson S50/S51/S70, E-mark

Quality product, E-mark available (approved for use on public roads).

Diameter for original lamp holder 45mm for Bilux light bulbs (BA20d 6V 35 / 35W)

Construction:
Metal reflector
Pane of glass
Bulb socket BA20d
elastic element for attachment
Position light socket with base BA9s

Suitable for the following light bulbs:
S2 6V or 12V 35 / 35W with base BA20d
T4W 6V or 12V with base BA9s

Technical specifications
Symmetrical light C / R-BS class, check according to UNECE regulation No. 113

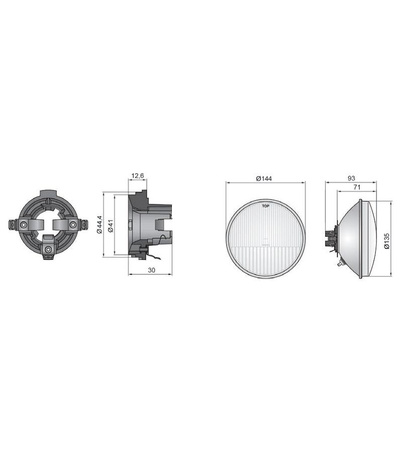

Dimensions:
Glass ø135 mm
Lamp holder ø144 mm

Particularly suitable for Simson:
S50 N (1975-80 BJ.),
S50 B (1975-76 BJ.),
S50 B1 (1976-80 BJ.),
S50 B2 (1976-80 BJ.),
S51 N (1980-87 BJ.),
S51 B1-3 (1980-88 BJ.),
S51 B1-4 (1980-88 BJ.),
S51 B2-4 (1980-88 BJ.),
S51 C (1983-89 BJ.),
S51 E (1982-88 BJ.),
S51 E / 4 (1982-88 BJ.)
S70 C (1983-88 BJ.),
S70 E (1983-88 BJ.),
S70 E / 2 (1985-88 BJ.)

Item is a quality product (EU production)

Scope of delivery:

1 x headlight insert with glass (without lightbulb)
