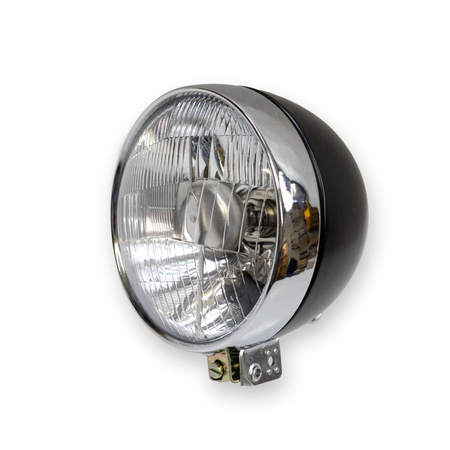

Headlight Kit for Simson S51/S50, Schwalbe, MZ, including Bulbs and Accessories

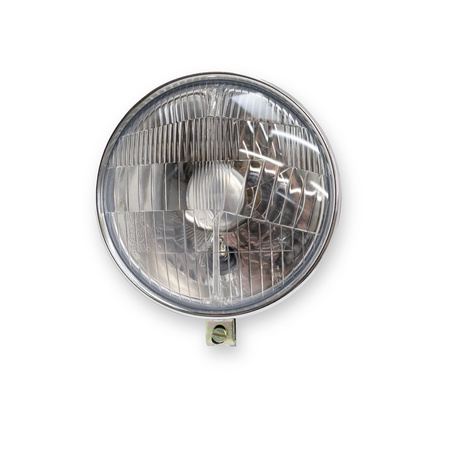

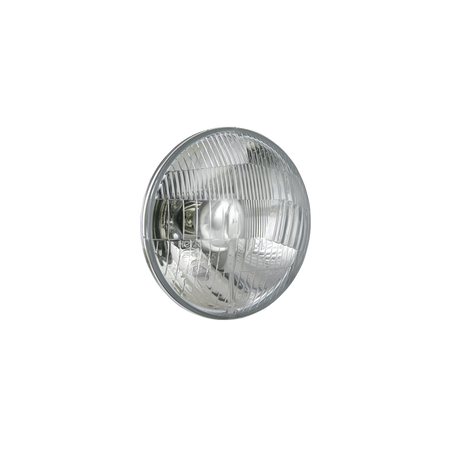

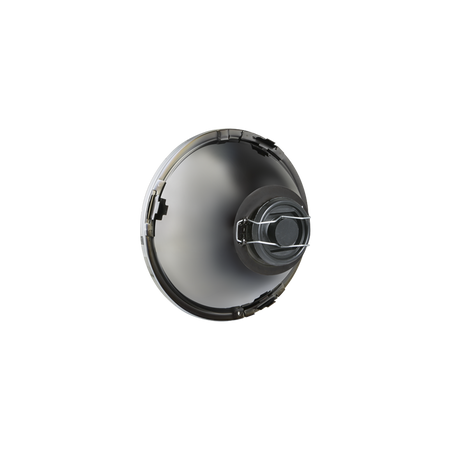

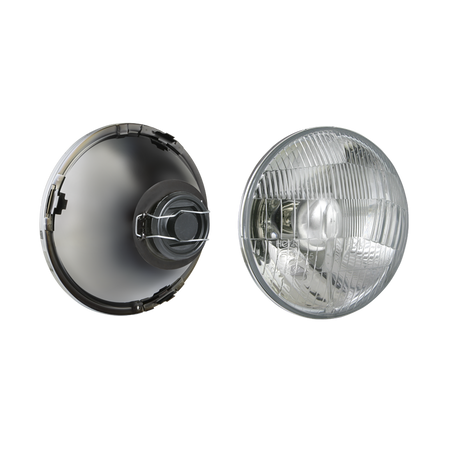

Headlight Insert Ø144 mm with Glass and Position Light Socket – H4, EU Quality
This quality product has an E-mark and is approved for use on public roads. It fits without modifications into the metal round lamp for Simson S51 / S50 and also for KR51 Schwalbe and SR4 models (Star, Sperber, Habicht). Not suitable for flat housings. With slight modifications, also suitable for halogen housings: The bracket must be adjusted slightly at the top, and an H4 connector (Art.-No. 1496) should be used. This must be sanded down by about 2–3 mm on the side that faces the lamp.
Construction:
- Metal reflector
- Glass pane
- With position light socket
- With sealing cap for H4 bulb (Art.-No. 4069)
- H4 12V
- Ba9s 12V

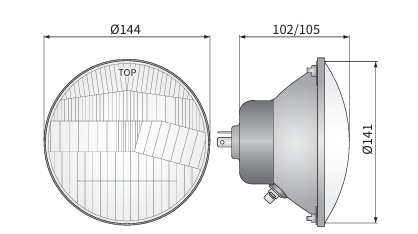

- Diameter: 144 mm
- Total depth (without bulbs and connectors): 102 mm

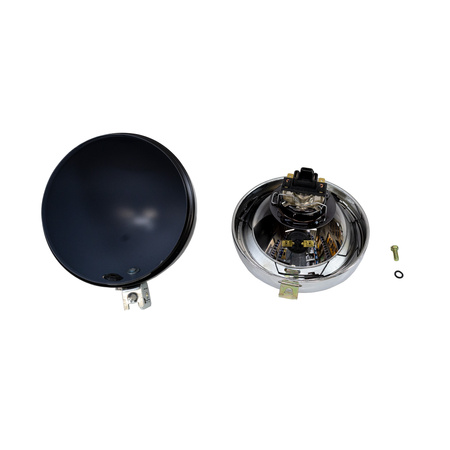

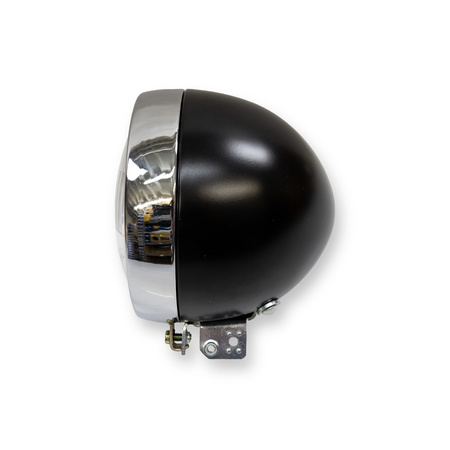

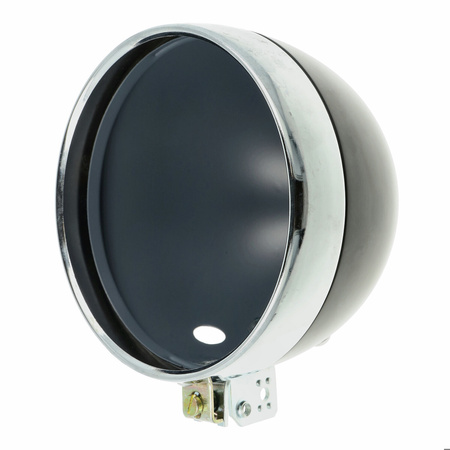

Headlight Housing Metal, Black with Lamp Socket, Chromed - Simson S50
Simson Original No: 20160, black metal headlight housing, including lamp socket, chromed ring, reflector, and mounting materials, without scatter glass.
Key Features & Properties
- Form: round
- Material: metal
- Suitable for Manufacturer: Simson
- Suitable for Vehicle Type: S50
- Primary Color: Black
- Secondary Color: Chrome

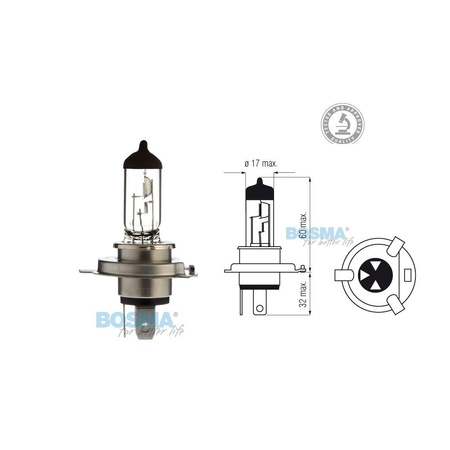

Halogen Bulb H4 HS1 12V 35/35W
Quality product with E-mark, approved for use on public roads. Brand lamp: Bomsa Group, lamp type: H4 HS1, voltage: 12 V, rated power: 35/35 W, socket type: PX43t.

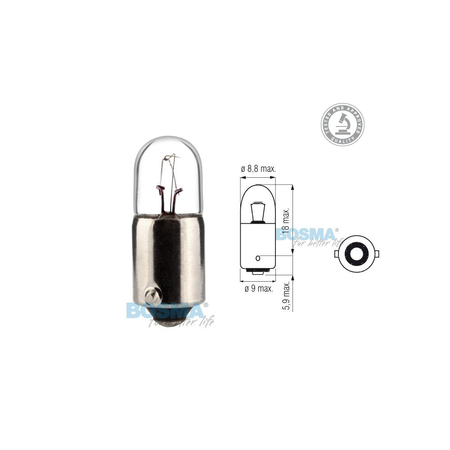

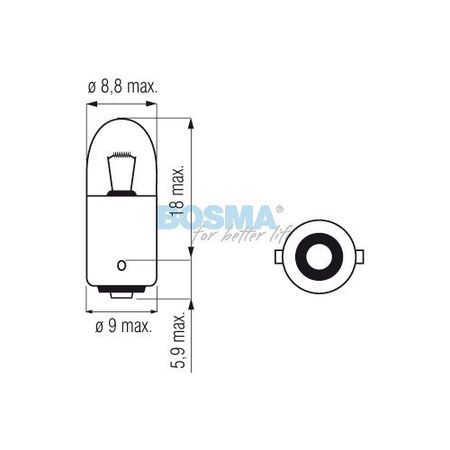

Bulb 12V 4W BA9S T4W
Quality product with E-mark, approved for use on public roads. Brand bulb: Bomsa Group, long lifespan, lamp type: T4W, voltage: 12 V, rated power: 4 W, socket type: Ba9s.
Dimensions:
- Total height of bulb: approx. 23 mm
- Socket diameter: ø9 mm
- Maximum diameter of the bulb glass: approx. ø9.3mm

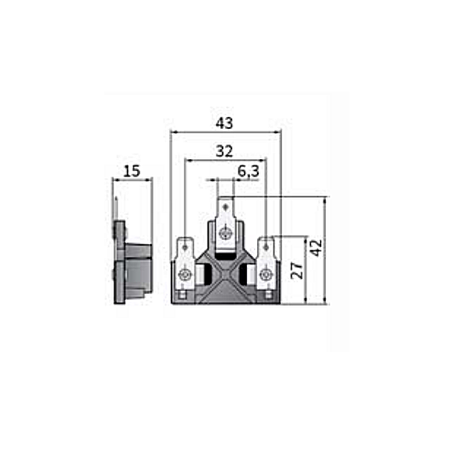

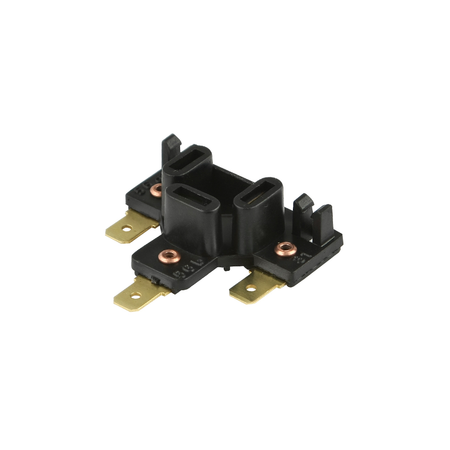

Lamp Socket Plug Base for Headlight H4 Bilux
Suitable for halogen and Bilux bulbs with socket H4 and P43t, for headlights with 6.3 mm spade connectors. Quality product of EU production.
Additional Information: Please note during installation that the plug must be attached to the lamp with the flat side facing forward.
Dimensions:
- Height: approx. 15 mm
- Width: approx. 43 mm

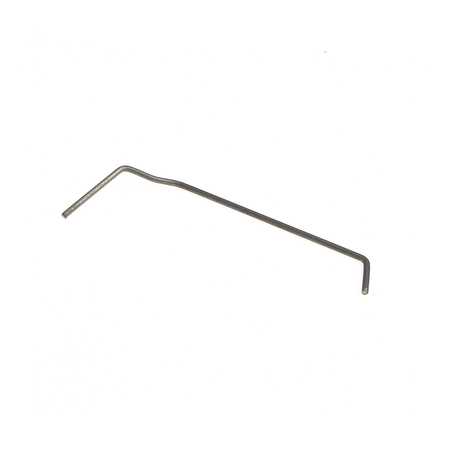

Spring Clip for Headlight Glass Frame
Made of spring steel - galvanized, this article is a quality product.
Dimensions:
- Wire diameter: 1.5 mm
- Length: 75 mm

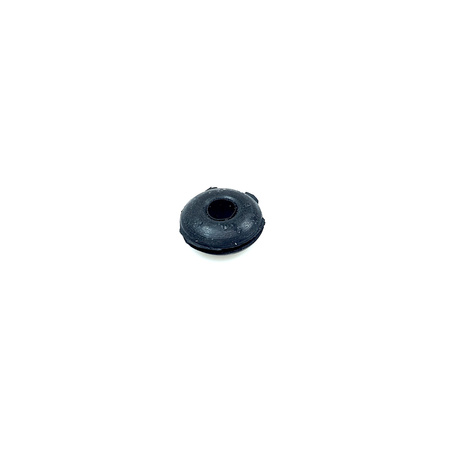

Cable Grommets 17mm
Dimensions:
- Height: 7 mm
- Inner diameter: 2-6 mm
- Outer diameter: 15-17.5 mm
Included in Delivery:
1x Headlight Insert with Glass
1x Headlight Housing
1x Halogen Bulb H4 HS1 12V 35/35W
1x Bulb 12V 4W BA9S T4W
1x Lamp Socket Plug
3x Spring Clip
1x Cable Grommet
